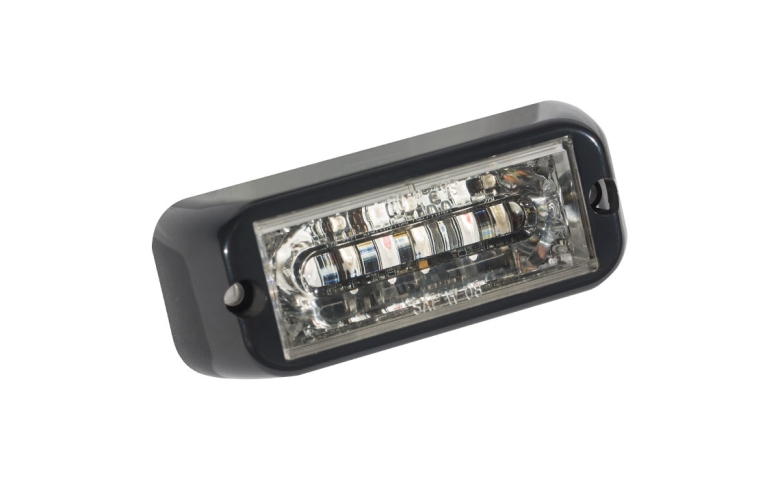

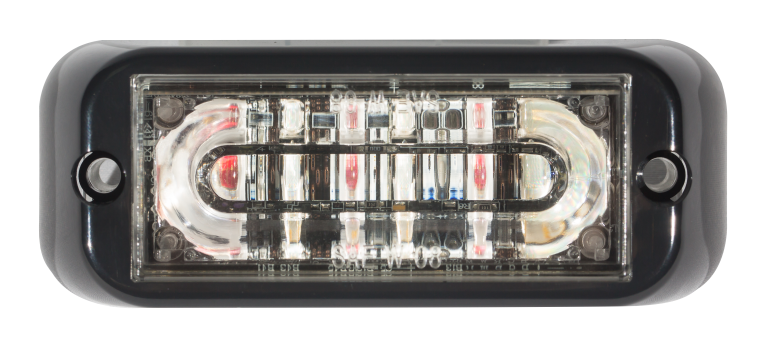

Regular Lighthead LL3

No.
LL3

Dimensions
L3.89” x W1.06” x H1.49” ( 98.9 x 27 x 37.9 mm )

FEATURE

• Compliance: SAE J595, ECE R10
• Ingress Protection Rating: IP67
• High power LED *3 or 6
Come with EVA Gasket *1, Screws *2
• Optical Options:
 – F (Focus)
 – E (Focus + Diffuser)
 – C (Focus + T13 Diffuser)
 – L (Linear)
 – R (Linear + T13 Diffuser)
• Optional Accessories : High/ Low Bezels, Flanges, Brackets



SPECIFICATION

• Model Name: Standard Lighthead LL3
• Input Voltage: 10~30V
• Synchronizable to up to 8 lamps
• Function: Standard / Stop
 Ambient Temperature Range: -30~50°C
• Flash Patterns: Single 15, Dual 37
