| • Compliance | SAE J595, CA T13, ECE R10, R65 I ( XB1, XA1 ) |
| • Ingress Protection Rating | IP67 / IP69K |
| • Housing | Aluminum |
| • Accessories | Foam*1, Screws*2 |
| • Mounting Options | – Surface mount – Bracket mount |

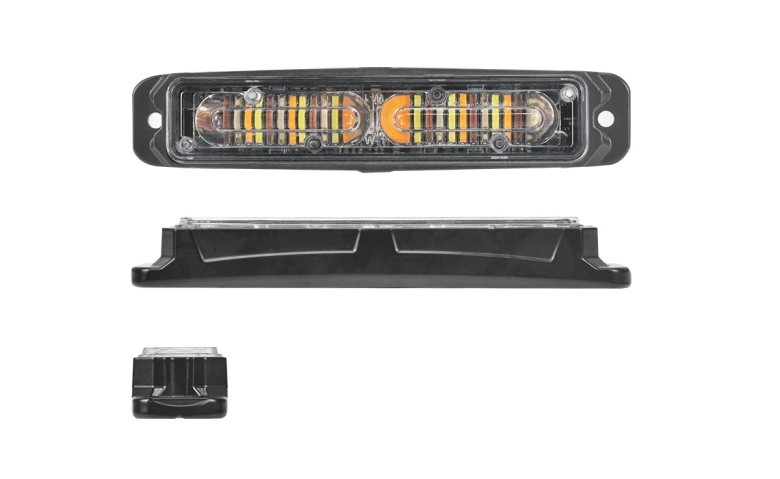

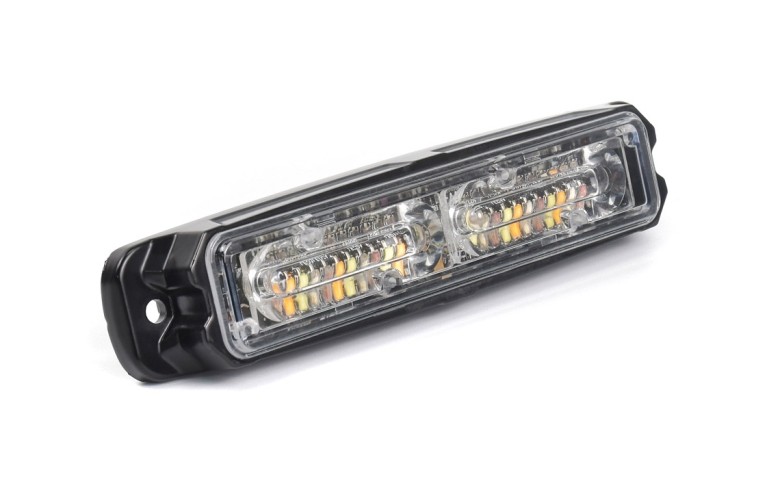

| • Model Name | Mini Lighthead LMC Quad |
| • Input Voltage | 10~30VDC |
| • High power | LED*24 |
| • Synchronizable | up to 8 lights |
| • Input Current | 1.3A max@DC12V,
1.0A max@DC24V |
| • Ambient Temperature Range | -30~50°C |
| • Flash Pattern | max 23 patterns varies from color modes, total 7 groups, 15 color modes |
