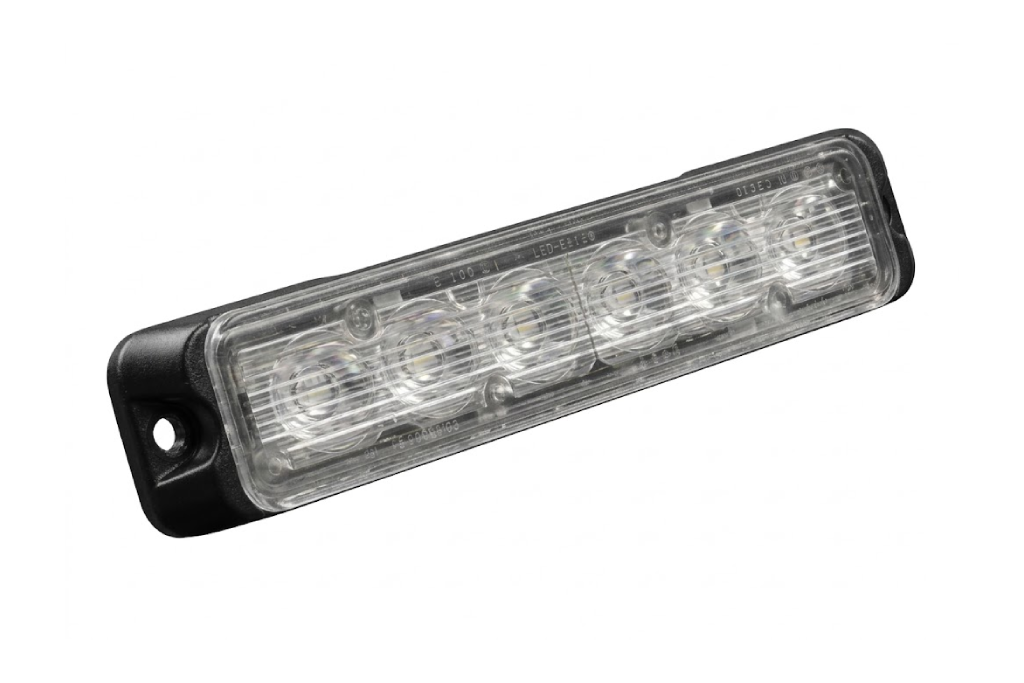

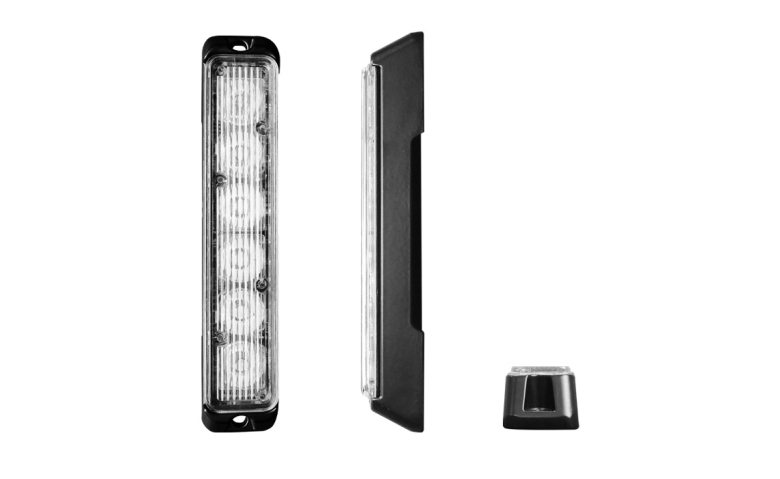

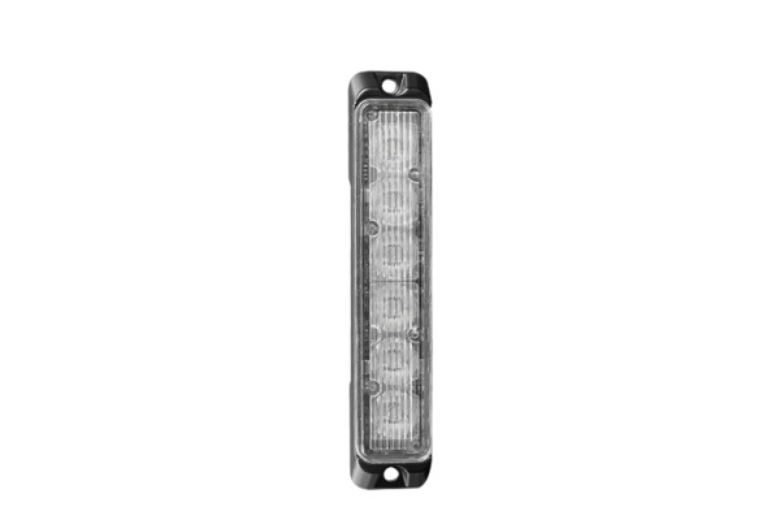

Mini Lighthead LM6 Vertical

No.
LM6V

Dimensions
L5.13’’ x W0.73’’ x H0.97’’ ( 130.4 x 18.5 x 24.7 mm )

FEATURE

• Vertical optics
• Compliance: SAE J595, ECE R10, R65 (XA2, XB2)
• Ingress Protection Rating: IP67 / IP69K
• Housing: Aluminium
• Accessories: 1 Foam, Screws
• Mounting Options: Universal Bracket
• Lens Cover: PC

SPECIFICATION

• Model Name: Mini Lighthead LM6 Vertical
• Input Voltage: 10~30V
• Synchronizable up to 8 lights
• High power LED*6
• Function: Standard / Stop / DIM
• Input Current: 2.0A max@DC12V, 1.2A max@DC24V
• Ambient Temperature Range: -30~50°C
• Flash Patterns: 13
