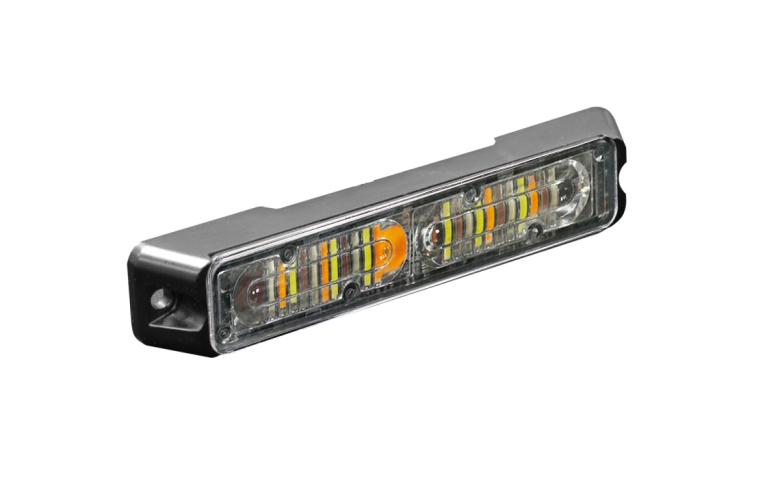

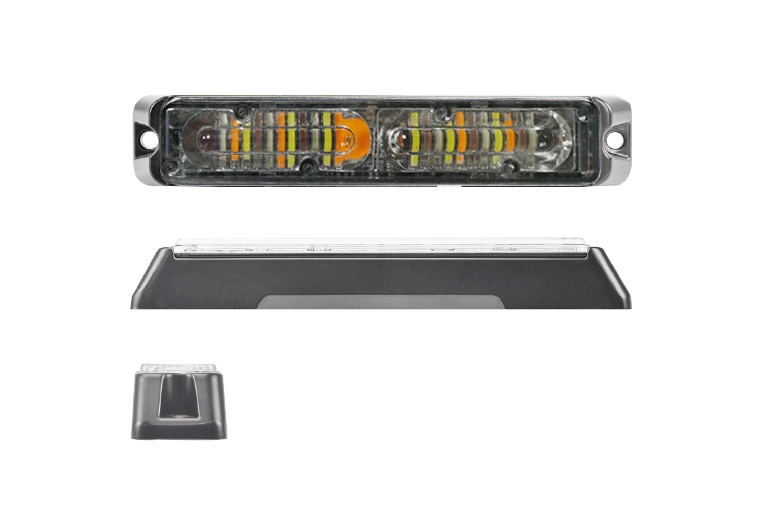

Mini Lighthead LM6 QUAD

No.
LM6

Dimensions
L5.13’’ x W0.69’’ x H0.97’’ ( 130.4 x 17.5 x 24.7 mm )

FEATURE

Compliance: SAE J595, CA T13, ECE R10, ECE R65 I (XB1 , XA1)
Ingress Protection Rating: IP67 / IP69
Housing: Aluminum housing with PC lens cover
Accessories: 1 Foam, 2 Screws
Mounting Options: Surface mount / Bracket mount (optional)

SPECIFICATION

Model Name: Mini Lighthead LM6 Quad
Input Voltage: 10~30V
● Synchronizable up to 8 units
● LED High power LED*24
Input Current: 1.3A max@DC12V, 1.0A max@DC24V
Ambient Temperature Range: -30~50°C
Flash Patterns: max 18 patterns varies from color modes, total 7 groups, 15 color modes
