| • Compliance | SAE J595, ECE R10, R65 (XA2, XB2) |
| • Ingress Protection Rating | IP67 |
| • Housing | Aluminum |
| • Accessories | EVA Gasket*1, Screw *2 |
| • Mounting Options | Surface mount / Bracket mount |
| • Optical Options | – F (Focus) – E (Focus + Diffuser) – C (Focus + T13 Diffuser) – L (Linear) – R (Linear + T13 Diffuser) |

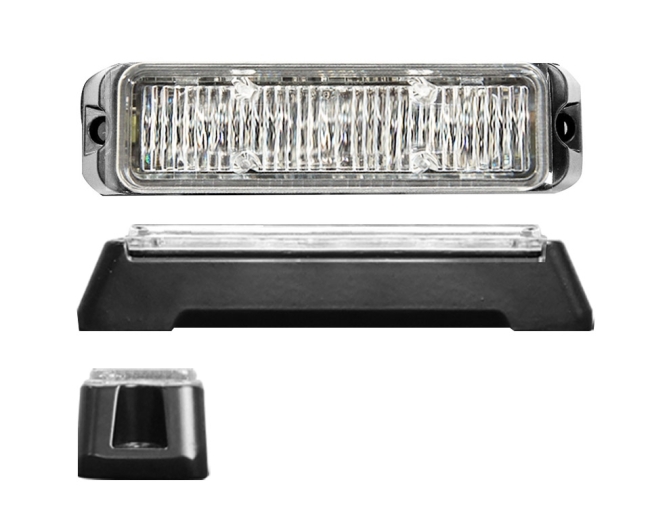

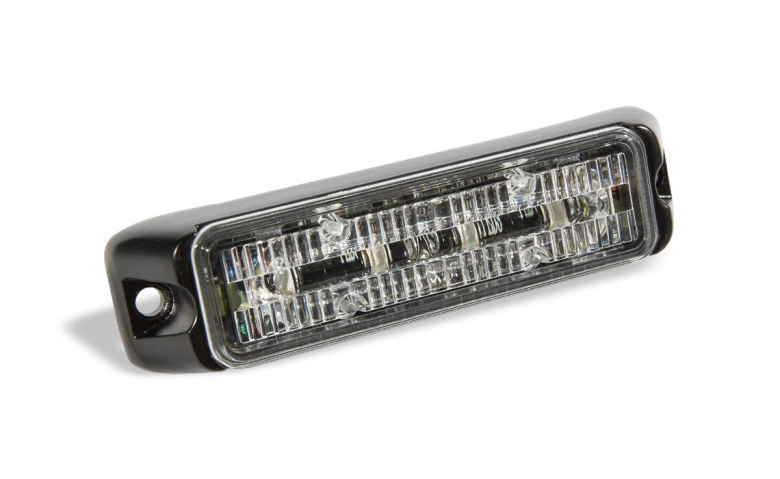

| • Model Name | Mini Lighthead LM4 |
| • Input Voltage | 10~30VDC |
| • Synchronizable | up to 8 lights |
| • Input Current | 1.0A max@DC12V ,
0.6A max@DC24V |
| • Ambient Temperature Range | -30~50°C |
| • Flash Pattern | 30 |
