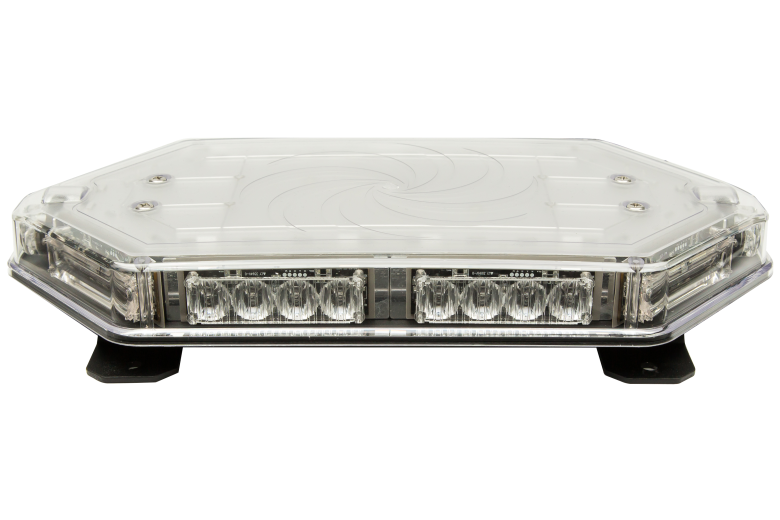

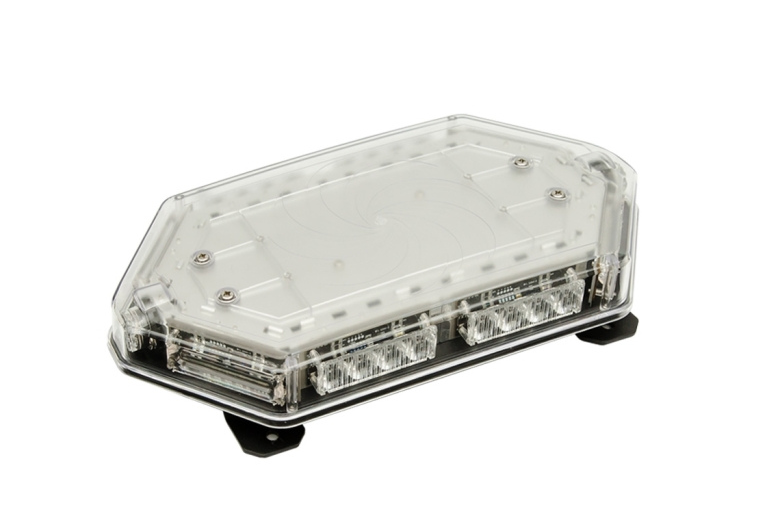

Mini Bar MB Series

No.
MBE-38

Dimensions
2.44″ (62mm) D x 16.45″ (418mm) L x 9.45″ (240mm) H

 • Compliance SAE J845
 • Ingress Protection Rating IP65
    • Available in Single / Split
    • Lens Cover PC
 • Mounting Options – Permanent
– Magnet
 • Model Name Mini Bar MB Series 38
 • Input Voltage 12 ~ 24 VDC
 • Synchronizable up to 8 lights
 • Input Current 7.0A max. @DC12V,

5.0A max. @DC24V

 • Ambient Temperature Range -40~60°C
 • Flash Pattern 60
