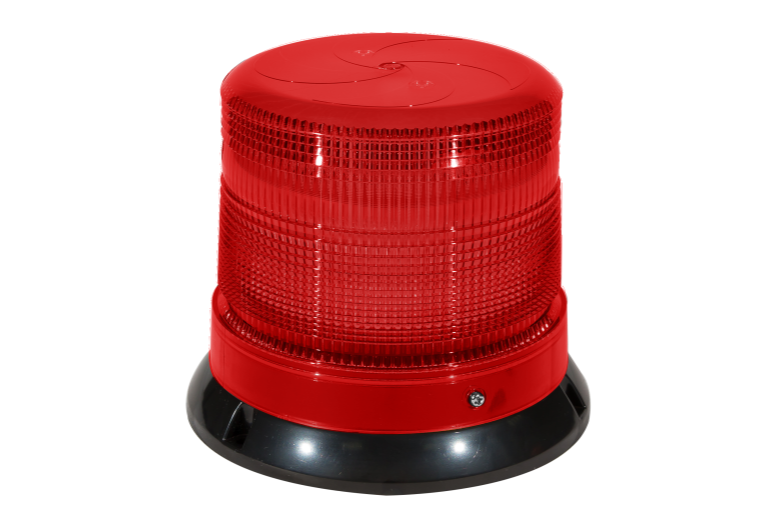

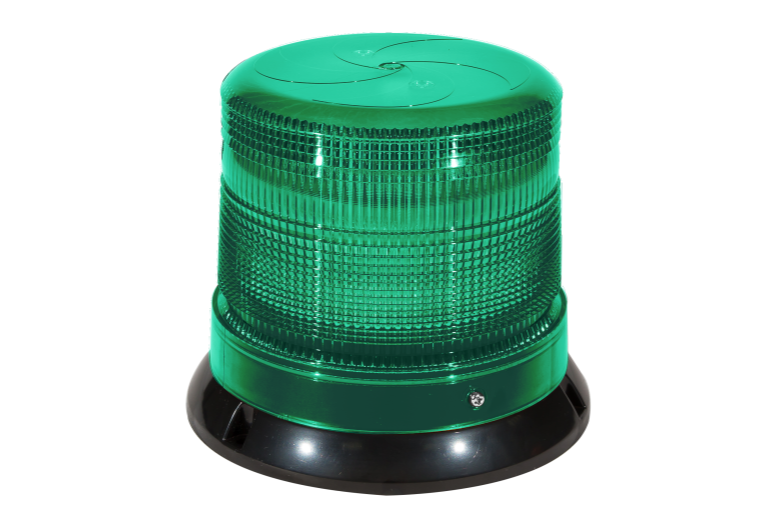

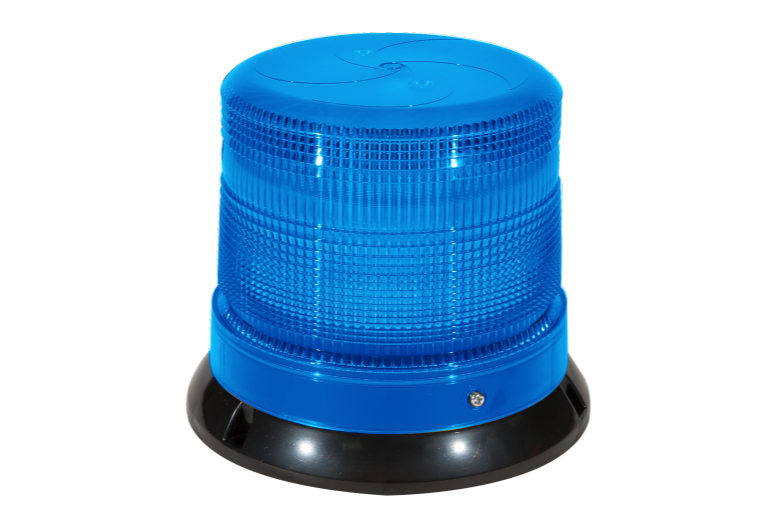

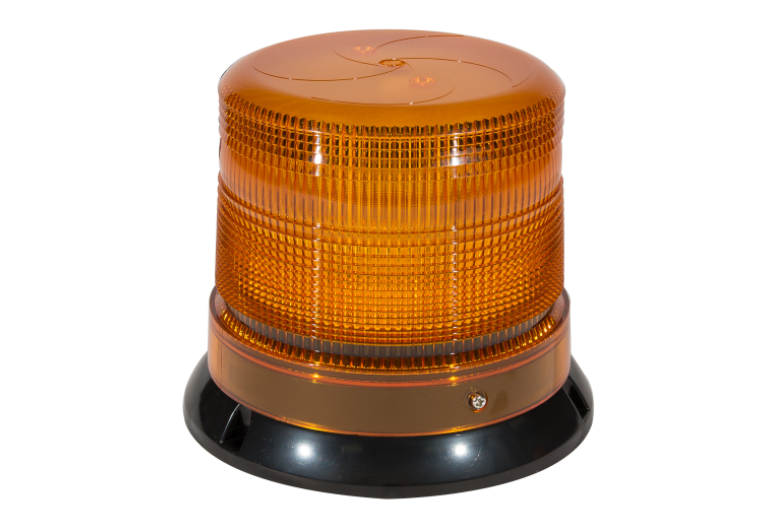

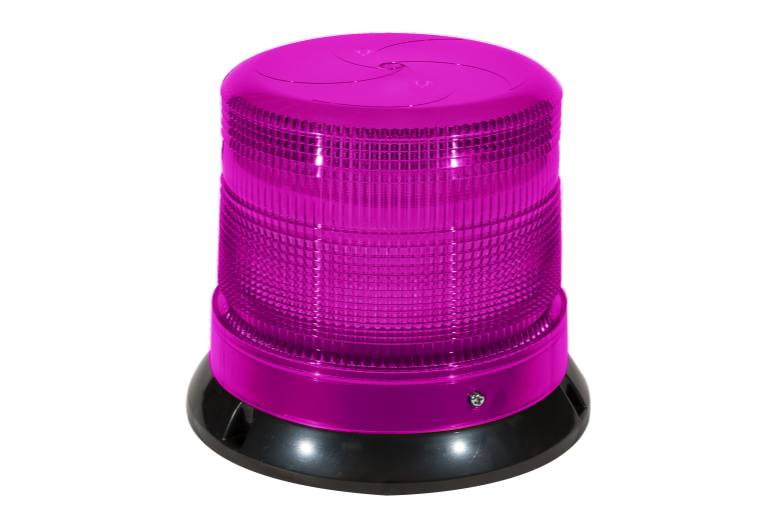

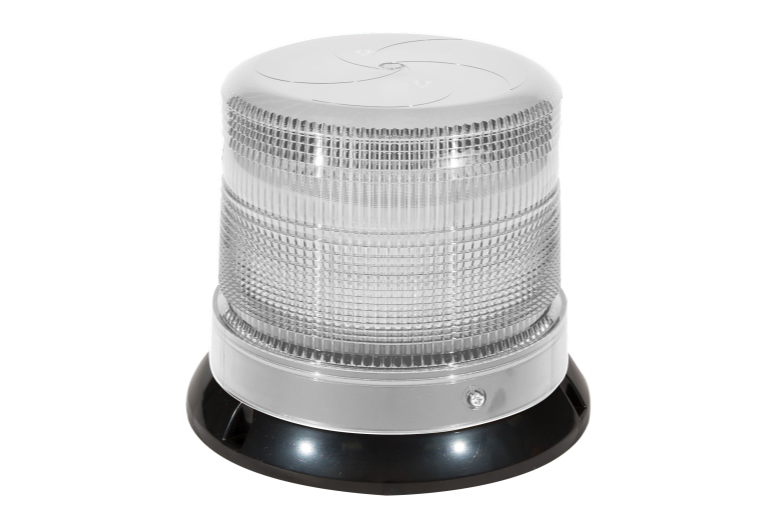

Beacon Series 7″ BLD

No.
BLD

Dimensions
Ø 5.15″ (130.8mm) x H 6.91″ (175.6mm)

FEATURE

  • Compliance: SAE J845, CA  T13
  • Ingress Protection Rating: IP65
  • Housing: Plastic
  • Mounting Options:
    – Permanent
    – Magnet mounting
    – Cig plug
    – Brush Guard
  • Available in: 12 / 16 High power LED versions

SPECIFICATION

  • Model Name: BLD
  • Input Voltage: 10~30V
  • synchronize with up to 8 beacons
  • Input Current: 2.0 A max @12.8VDC
  • Flash Patterns: 30
