| • Compliance | SAE J595, CA T13 |
| • Ingress Protection Rating | IP67 |

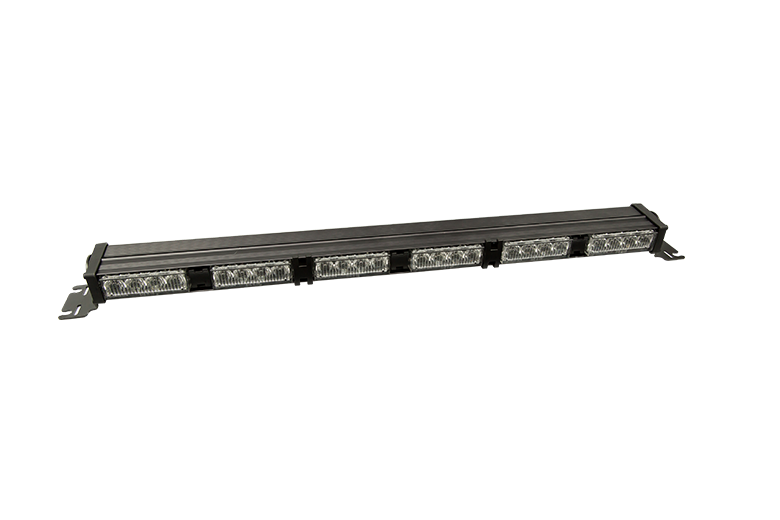

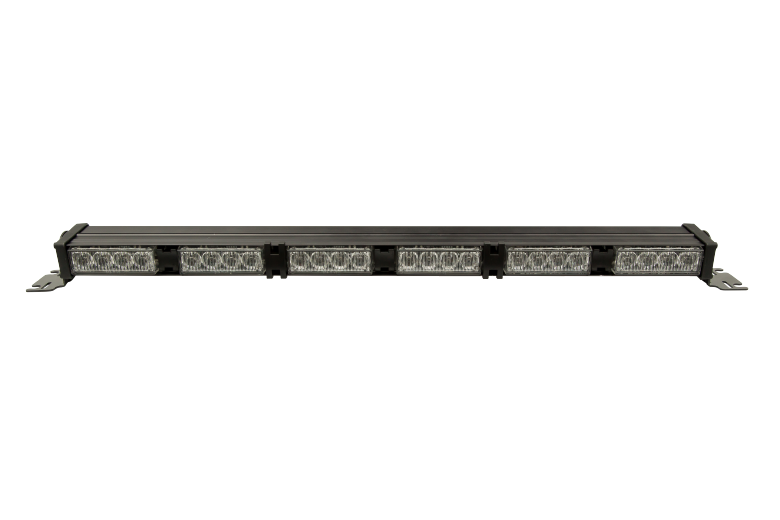

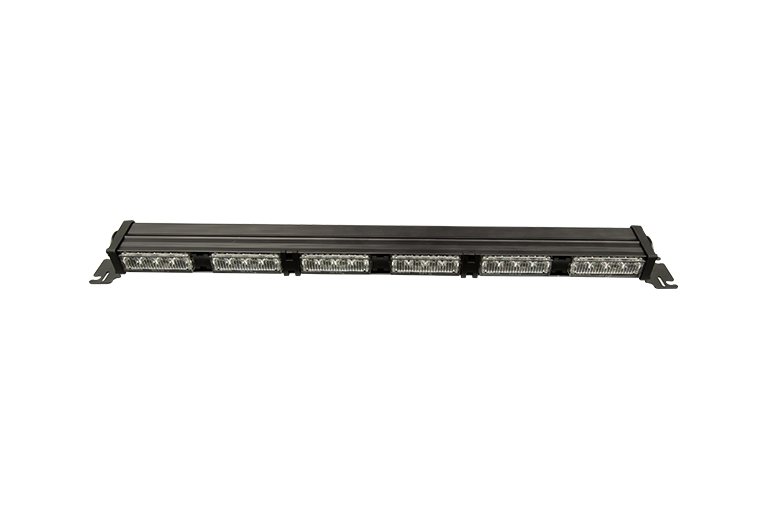

| • Available in | 3 / 4 / 6 / 8 High power LED versions |
| • Housing | Aluminum |
| • Accessories | L bracket, screws*4, switch panel*1 or control box*1 |
| • Mounting Options | Permanent |
| • Model Name | SL3X / SL4X series |
| • Input Voltage | 10~30VDC |
| • Input Current | – 3 or 6 LED 2 module 1.0/2.0A max @DC12V – 3 or 6 LED 4 module 1.6/3.2A max @DC12V – 3 or 6 LED 6 module 2.4/4.8A max @DC12V – 3 or 6 LED 8 module 3.2/6.4A max @DC12V – 4 LED 2 module 1.6A max @DC12V – 4 or 6 LED 4 module 3.2A max @DC12V – 4 LED 6 module 4.8A max @DC12V – 4 LED 8 module 6.4A max @DC12V |
| • Ambient Temperature Range | -30~50°C |
| • Flash Pattern | 25 (2 modules), 31 (4/6/8 modules) |
