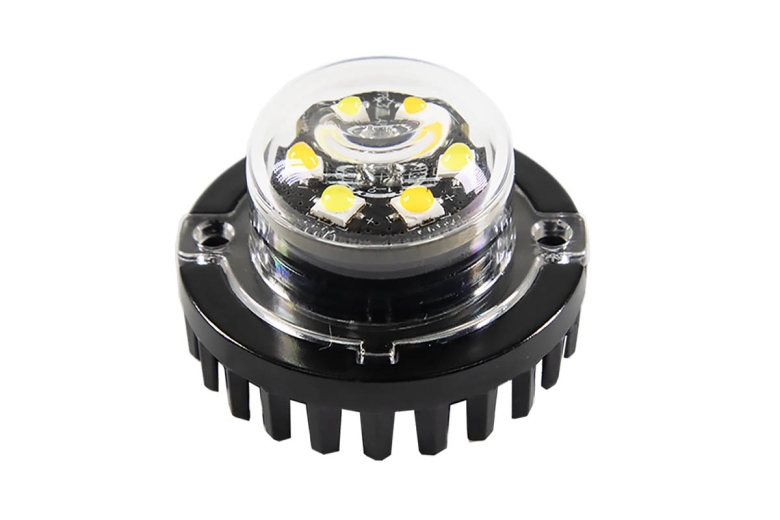

LH Series N Optics

No.
LHN

Dimensions
1.52″ (38.5mm) W x 0.79 ” (20mm) H

 • Compliance SAE J595
 • Ingress Protection Rating IP67
    • Available in 4 / 6 / 8 / 9 / 12 High power LED versions(varify from different model)
    • Housing Aluminum
 • Accessories EVA Gasket*1, Screws *2
 • Mounting Options -Square L Bracket
-Oval C Bracket
-Black or Painted Chrome Bezel
-Grommet
 • Model Name LH series N optics
 • Input Voltage 10~30VDC
 • Synchronizable up to 8 lights
 • Input Current 1.5A max
 • Ambient Temperature Range -30~50°C
 • Flash Pattern 21 (Single color), 77 (Dual color)
